The BIG NERO 12V Dark LED ground light is the perfect fixture for illuminating tall trees or walls from gravel, grass, pavement or wood.The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.Tip: Think of an extension cable
- Produces a strong and very wide, focused light
- Designed for illuminating tall elements up to 6½ meters
- Fitted with in-lite motion
Installation advice:
3 BIG NERO on the edge of the trunk, aimed at the top
In stock
Art. nr.
10103451
in stock, delivered within 3 working days

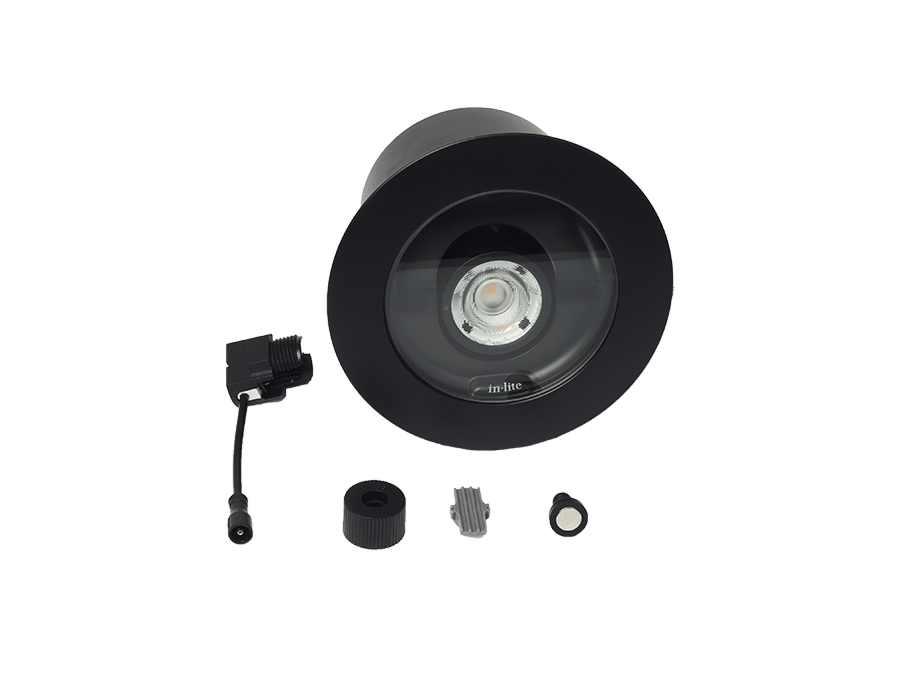

IN THE PACKAGE
INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- in-lite Motion
Product overview
Product Details

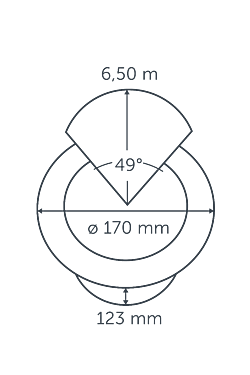

With its new single-chip LED and world-leading LEDiL® lens, the BIG NERO 12V Dark has a light distribution of at least 6 1/2 meters, with a light angle of 49 degrees.The new BIG NERO features the new in-lite Motion technology.This technology makes it extremely easy to adjust the light source without having to open the fixture. Simply hold the magnet provided up to the in-light logo and the light source will tilt automatically.
Specs
Art. nr.
10103451
Application
Facade, Hedge, House, Tree
Mounting depth (inch)
5.1181
Recessed depth (mm)
130
CRI
92
Diameter (inch)
6.6929
Diameter (mm)
170
EAN code
8717051004490
Energy label
G
Height (inch)
4.8425
Height (mm)
123
IP class
67
Types of Light
Accent
Efficiency (Lumen/Watt)
65
Net luminous flux (Lumen)
488
Order unit
50
Power [W]
7.5
Processing
Concrete, Grass, Gravel, Natural stone, Soil, Wood
Article group
Integrated
Voltage
12 volt
VA value
11.9
Color temperature
3100
Material finishing/coating
FCBV
Luminous intensity [Cd]
627.4
Power factor
0.63
Installation instructions
Installation advice
The BIG NERO can be buried or integrated into various types of concrete products, natural stone and wood. This requires drilling a 142 mm hole.
If the new BIG NERO or BIG NERO NARROW is included in a lighting plan, the following guidelines must be followed: Always use the 10/2 cable, do not exceed the maximum cable length of 40 meters or the number of fixtures (HUB-50 for up to four BIG NERO or BIG NERO NARROW fixtures and up to seven with the HUB-100. The SMART HUB-150 for up to max. 11, max. 7 at one line).
