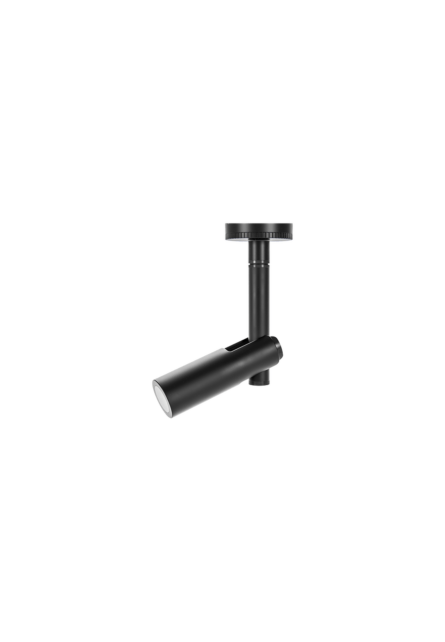

AIM CEILING is small in size but big in impact. Perfect to incorporate on your ceiling or on the wall of your canopy or veranda. By means of a modular connection, AIM can easily be extended to three light sources. This unique connection also makes it possible to keep rotating the light sources infinitely 360°. Thus, AIM's light can be adjusted in any direction.
Choose both the desired height and the number of light sources below.
Please note! AIM CEILING comes standard with one light source.
Would you like more light sources?
Then choose below for an extension with one extra light source or for an extension with two extra light sources.
Choose both the desired height and the number of light sources below.
Please note! AIM CEILING comes standard with one light source.
Would you like more light sources?
Then choose below for an extension with one extra light source or for an extension with two extra light sources.
- Built-in KILLFLASH
- Patented waterproof connection
- Modular construction up to three light sources
In stock
Art. nr.
10401365
in stock, delivered within 3 working days
Product overview
Product Details
AIM consists of two unique lighting fixtures, where each model can be complemented with additional AIM LIGHT HEADs. You have the choice of a ceiling-mounted or spotlight in various heights. The spotlight is available in 80 cm, 40 cm and 16 cm.
Each luminaire comes with one light source as standard. By ordering separate LIGHT HEADs you easily expand.
Each AIM LIGHT HEAD is fitted with a killflash so the light does not dazzle. Please note: the killflash cannot be dismantled.
Each luminaire comes with one light source as standard. By ordering separate LIGHT HEADs you easily expand.
Each AIM LIGHT HEAD is fitted with a killflash so the light does not dazzle. Please note: the killflash cannot be dismantled.
Specs
Art. nr.
10401365
Application
Canopy, Pergola
CRI
90
Diameter (inch)
1.1024
Diameter (mm)
28
EAN code
8717051006616
Energy label
G
Height (inch)
4.7244
Height (mm)
120
IP class
55
Length (inch)
1.8504
Length (mm)
47
Light direction
Adjustable
Types of Light
Direct
Efficiency (Lumen/Watt)
70
Net luminous flux (Lumen)
84
Order unit
50
Power [W]
1.2
Article group
Surface
Voltage
12 volt
VA value
2.1
Width (inch)
1.8504
Width (mm)
47
Color temperature
3000
Material finishing/coating
Anodized
Kilowatt hour
1
Luminous intensity [Cd]
157.7
Power factor
0,56
Installation instructions
Installation advice
Mount AIM CEILING's BASE to a ceiling or wall with supplied screws and dowels. Connect the luminaire with the EASY-LOCK and ready! To add additional light sources, see the manual.<br />
<br />
- AIM EXTRA LOW is suitable for illuminating plants in a pot about 1.5 cm high. Place several AIM EXTRA LOW throughout for best results.<br />
- AIM and AIM LOW suitable for illuminating paths and borders. Place an AIM every 2m to 4m, depending on the total length of the path/boundary.<br />
- AIM CEILING suitable for illuminating sitting and dining areas and outdoor kitchens from walls and ceilings.
