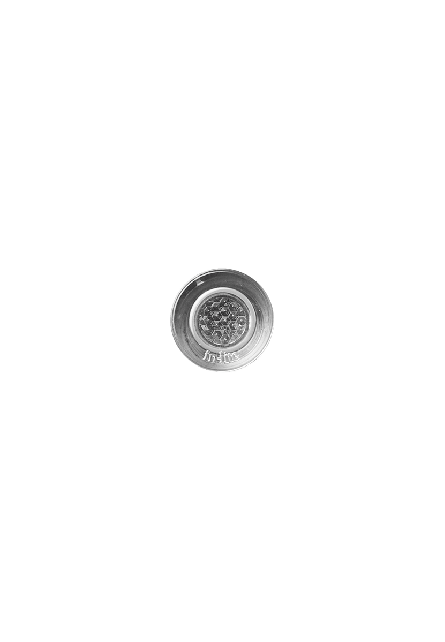

Ground spot HYVE 22 is small but powerful. This subtle fixture is practically invisible during the day. In the evening, it provides atmospheric warm light through the honeycomb lens.
HYVE 22 is suitable for use in stair treads and terraces, for example. Available with and without ring.
HYVE 22 is for recessed mounting. HYVE 22 (add ring) has a screw thread for attaching RING 28. The ring is not included.
HYVE 22 is suitable for use in stair treads and terraces, for example. Available with and without ring.
HYVE 22 is for recessed mounting. HYVE 22 (add ring) has a screw thread for attaching RING 28. The ring is not included.
- Produces an eye-catching yet attractive lighting effect
- Designed for illuminating the edges of a driveway, walkway or deck
- Drive-over
Installation advice:
A HYVE 22 RVS every 1½ to 2 meters
In stock
Art. nr.
10104050
in stock, delivered within 3 working days
IN THE PACKAGE
INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
Product overview
Product Details
Ground spot HYVE 22 is small but powerful. This subtle fixture with a diameter of 22 mm is practically invisible during the day. In the evening, it provides atmospheric warm light through the honeycomb lens. HYVE 22 is suitable for use in stair treads and terraces, for example. Available with and without ring.
Please note! HYVE 22 is for recessed mounting. HYVE 22 (add ring) has a screw thread for attaching RING 28. The ring is not included. For composite products, order HYVE 22 Black, HYVE 22 Pearl Grey or HYVE 22 Stainless Steel.
Please note! HYVE 22 is for recessed mounting. HYVE 22 (add ring) has a screw thread for attaching RING 28. The ring is not included. For composite products, order HYVE 22 Black, HYVE 22 Pearl Grey or HYVE 22 Stainless Steel.

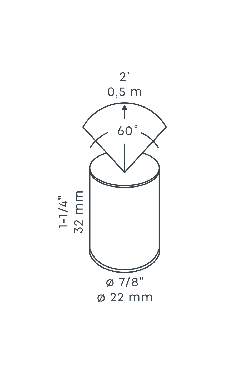

Specs
Art. nr.
10104050
Application
Driveway, Path, Stairs, Terrace
Mounting depth (inch)
1.9685
Recessed depth (mm)
50
CRI
95
Diameter (inch)
0.8661
Diameter (mm)
22
EAN code
8717051003486
Energy label
G
Height (inch)
1.2598
Height (mm)
32
IP class
67
Light direction
Upward adjustment
Types of Light
Diffuse
Efficiency (Lumen/Watt)
10
Net luminous flux (Lumen)
2
Power [W]
0.2
Processing
Concrete, Grass, Gravel, Natural stone, Wood
Article group
Recessed lights
Voltage
12 volt
VA value
0.2
Color temperature
3000
Luminous intensity [Cd]
2.2
Power factor
1
Installation instructions
Installation advice
HYVE 22 is installed in a hole in stone (cooled diamond drill) with a diameter of 22.4 mm. For installation in wood, we recommend HYVE 22 (add ring).
<br /><br />
Please note: only install the fixture in a straight hole of the correct size to prevent problems with the electronics.
Recommended accessories
-
SPIKE 22Ground pin recessed light Ø 22mm
